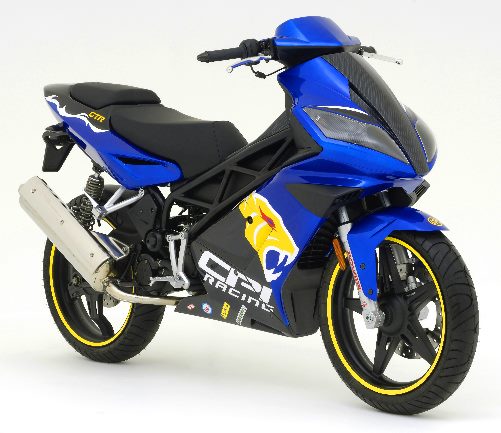

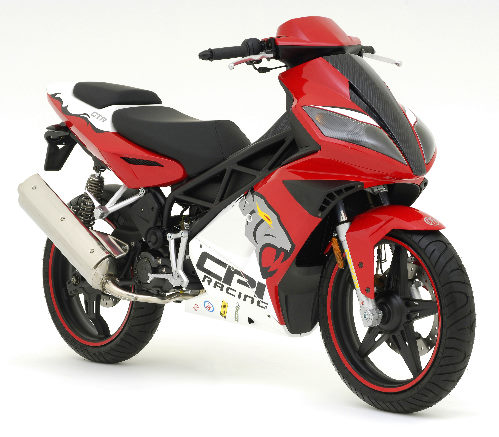

GTR 180









specification  GTR 180
ENGINE TYPE 4 STROKE LIQUID COOLED
MAX POWER & TORQUE 13PS/7200RPM & 1.3KG-M/6000RPM
CYLINDER NO. 1
BORE X STROKE Φ61 X 57.8
DISPLACEMENT 169 CC
CARBURETTOR KEIHIN
STARTING ELECTRIC & KICK
LUBRICATE PRESSURE CIRCULATION
LUBRICATE CAPABILITY 1.0 LITER
SUSPENSION FRONT HYDRAULIC FORK
SUSPENSION REAR OIL PNEUMATIC SHOCK
BRAKE FRONT DISC - Φ280mm
BRAKE REAR DISC - Φ210mm
TIRE FRONT 110/70H17-4PR
TIRE REAR 120/80H16-4PR
TRANSMISSION CVT
FUEL UNLEADED GASOLINE
FUEL CAPABILITY 9 L
OVERALL DIMENSION 2000X730X1140MM
PACKAGE 40HQ 48 SETS
WHEEL BASE 1420
GROUND CLEARANCE 254
DRY WEIGHT 135





                             * EEC 92/61 Homologation coming soon  *
