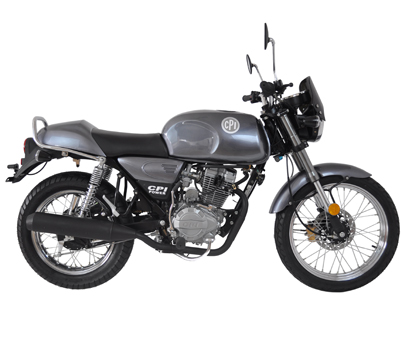

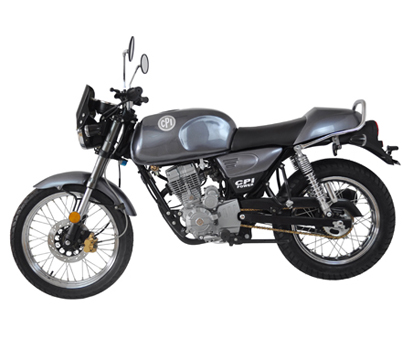

XR125 / 150 / 250

Specification XR125 XR150 XR250
Dimensions L x W x H(mm) 1930 x 710 x 1050 1930 x 710 x 1050 1930 x 710 x 1050
Wheelbase(mm) 1230 1230 1230
Engine Type 1-cylinder, 4-stroke, air -cooled 1-cylinder, 4-stroke, air -cooled 1-cylinder, 4-stroke, air -cooled
Displacement(cc) 124   227.4
Bore x Stroke(mm) 56.5 x 49.5 56.5 x 49.5 56.5 x 49.5
Compression Ratro 9.0:1 9.0:1 9.0:1
Maximum Power(kw/rpm) 7.8 / 8500 14 / 7000 14 / 7000
Maximum Torque(N.m/rpm) 9 / 7000 16.5 / 6000 ± 325 16.5 / 6000 ± 325
Fuel Tank Capacity(L) 15 15 15
Fuel Efficiency(L/100km) 2 2 2
Dry Weight(kg) 108 108 108
Max. Speed(km/h) 85 120 120
Starter Electric and kick Electric and kick Electric and kick
Ignition C.D.I C.D.I C.D.I
Transmission 5-speed gear 5-speed gear 5-speed gear
Drive Chain Chain Chain
Front Brake Disc Disc Disc
Rear Brake Drum Disc Disc
Front Tyre 90 / 90-18 90 / 90-18 90 / 90-18
Rear Tyre 110 / 80-16 110 / 80-16 110 / 80-16C.D.I
