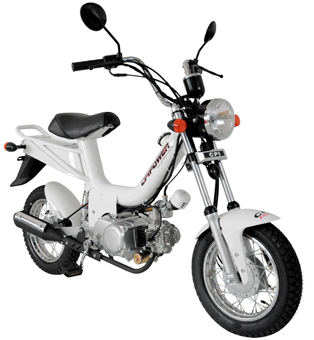

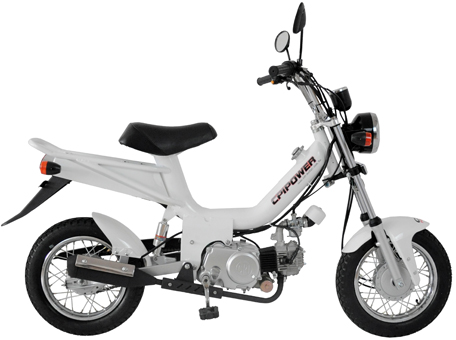

Mini RV 50 / 70 / 110
Specification MINI RV 50 MINI RV 70 MINI RV 110
Dimensions L x W x H(mm) 1750×750×1070 1930 x 710 x 1050 1930 x 710 x 1050
Wheelbase(mm) 1200 1230 1230
Engine Type 49CC 1-CYLINDER 4 STROKE AIR COOLED 70CC 1-CYLINDER 4 STROKE AIR COOLED 110CC 1-CYLINDER 4 STROKE AIR COOLED
Displacement(cc) 50 70 110
Maximum Power(kw/rpm) 1.8 / 8000 3.3 / 8000 4.5 / 8000
Maximum Torque(N.m/rpm) 2.8 / 6500 4.3 ~ 5 / 6000 6.4 ~ 7.4 / 6000
Fuel Tank Capacity(L) 2.6 4.9 4.9
Dry Weight(kg) 65 65 65
Max. Speed(km/h) 55 60 60
Starter Electric and kick Electric and kick Electric and kick
Ignition C.D.I C.D.I C.D.I
Transmission CVT AUTO CVT AUTO CVT AUTO
Front Brake/ Rear Brake Drum / Drum Drum / Drum Drum / Drum
Front Tyre 3.00-12 3.00-12 3.00-12
Rear Tyre 3.00-12 3.00-12 3.00-12
